System characteristics:
1. Modular design, hot swappable.
2. Strong load adaptability for linear and nonlinear load.
3. Intelligent module and system protection design.
4. Incredible low noise system design.
5. Double DSP controller for individual power module.
6. Digital control for the whole parts including rectifier, inverter, charger and discharger.
7. IGBT modules rather than discrete components are applied in the power module.
8. Inbuilt power distribution for input and output connection.
9. Large touch screen LCD with plenty of information.
10. Independent charger for batteries, intelligent battery management system.
11. Digital paralleling technology, very low circle current between modules.
12. Totally front access, top and bottom cable connection.
13. Each individual module is configured with independent controller, avoid single point failure risk.
Characteristic items list:

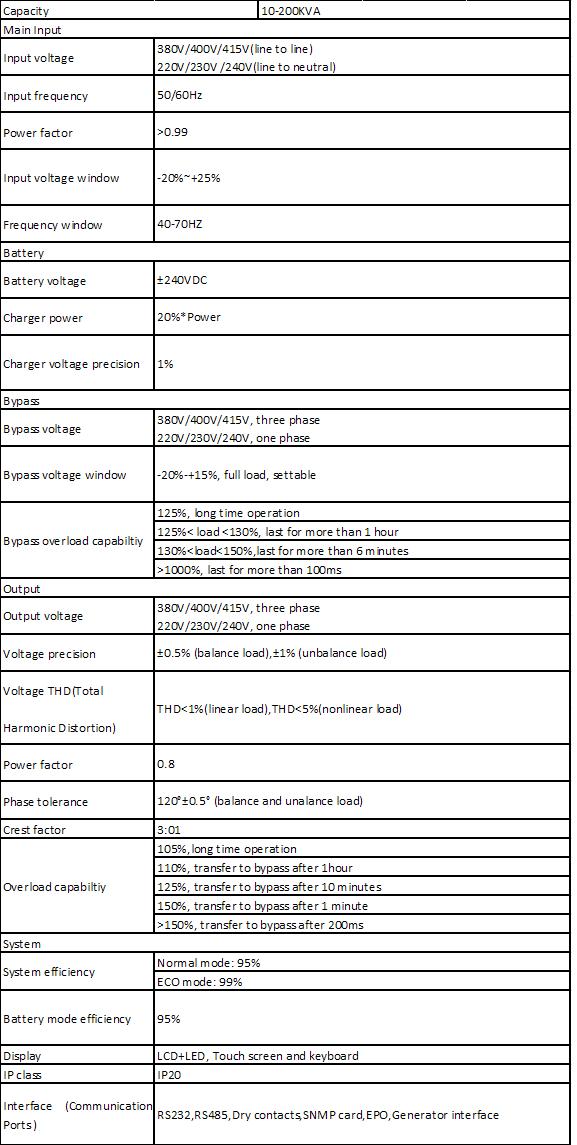

Specification of 380V/400V/415V

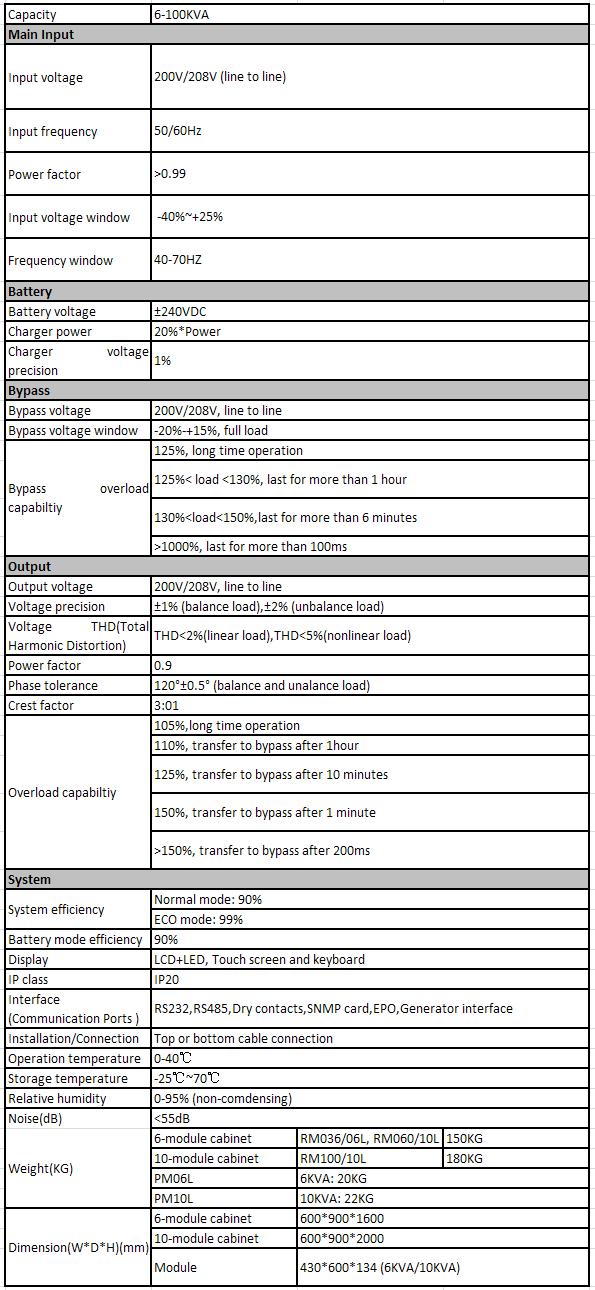

Specification of 200v/208v
